Anschütz Optics ring mount, 30mm, medium, dovetail, screwed, two piece - 63501
€39.00*
| Category: | Mounts |
|---|---|
| Dovetail (mm): | 9 - 11 |
| Height adjustable: | No |
| Mount height: | Medium |
| Mount type: | two-piece |
| Pre-inclined : | No |
| Rail: | Dovetail |
| Tube diameter: | 30 |
Manufacturer: Anschütz Optics
Details of the Responsible Person:
jabolo GmbH, jabolo.de, info@jabolo.de
Anschütz Optics ring mount, 30mm, medium, dovetail, screwed, two piece - 63501

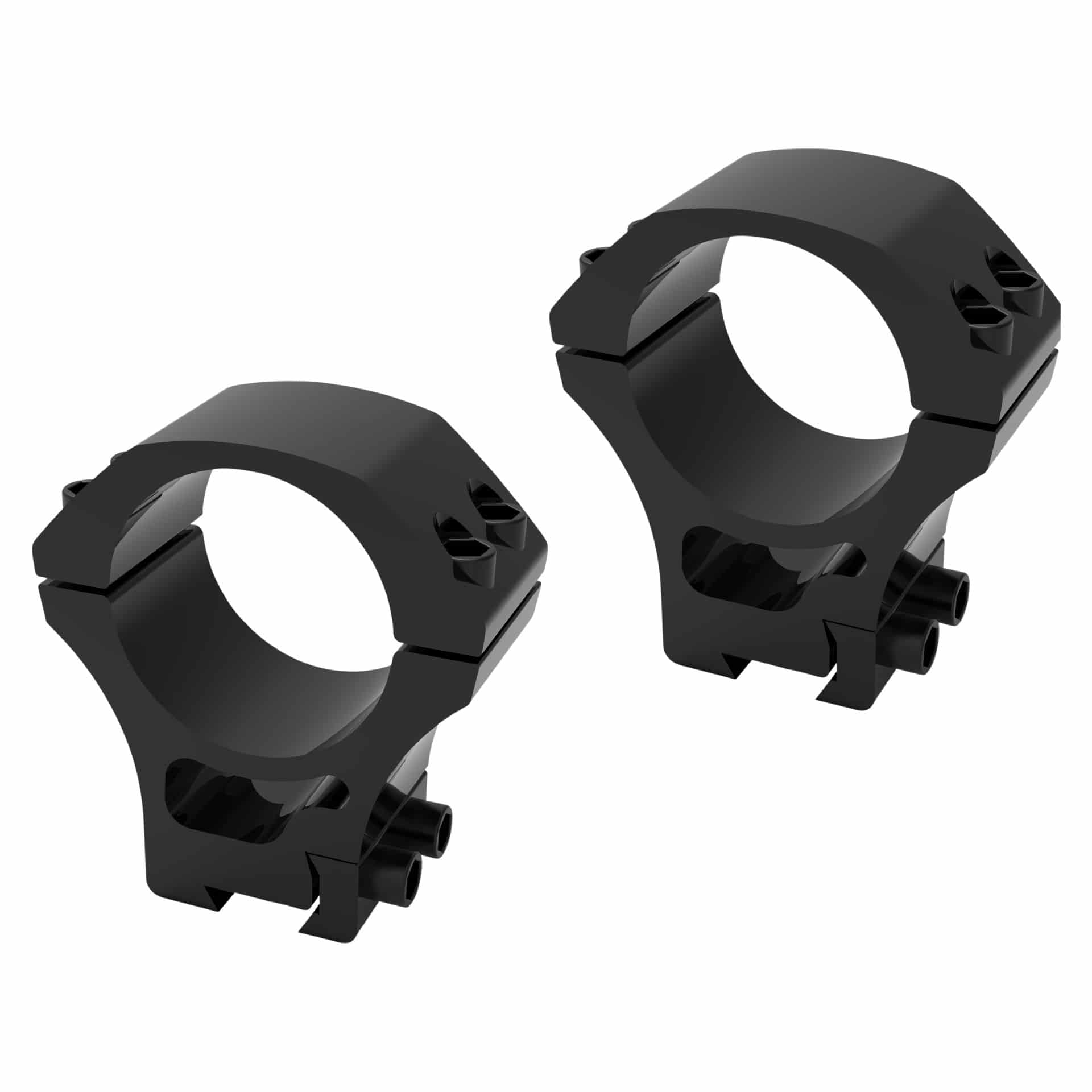

Maximum precision and reliability: The Anschütz Optics Ring Mount 30mm Medium (63501) is the ideal choice for demanding marksmen and hunters. Made from durable 6061-T6 aluminum, this two-piece mount offers a perfectly flat surface for consistent performance under all conditions.
Designed for 9–11 mm dovetail rails, the medium-profile height of 17.10 mm ensures an elevated and stable scope fit. Featuring a double hex fixation and M4x10 thread screws, it provides secure, rock-solid attachment. An integrated protection strip prevents scratches and enhances grip.

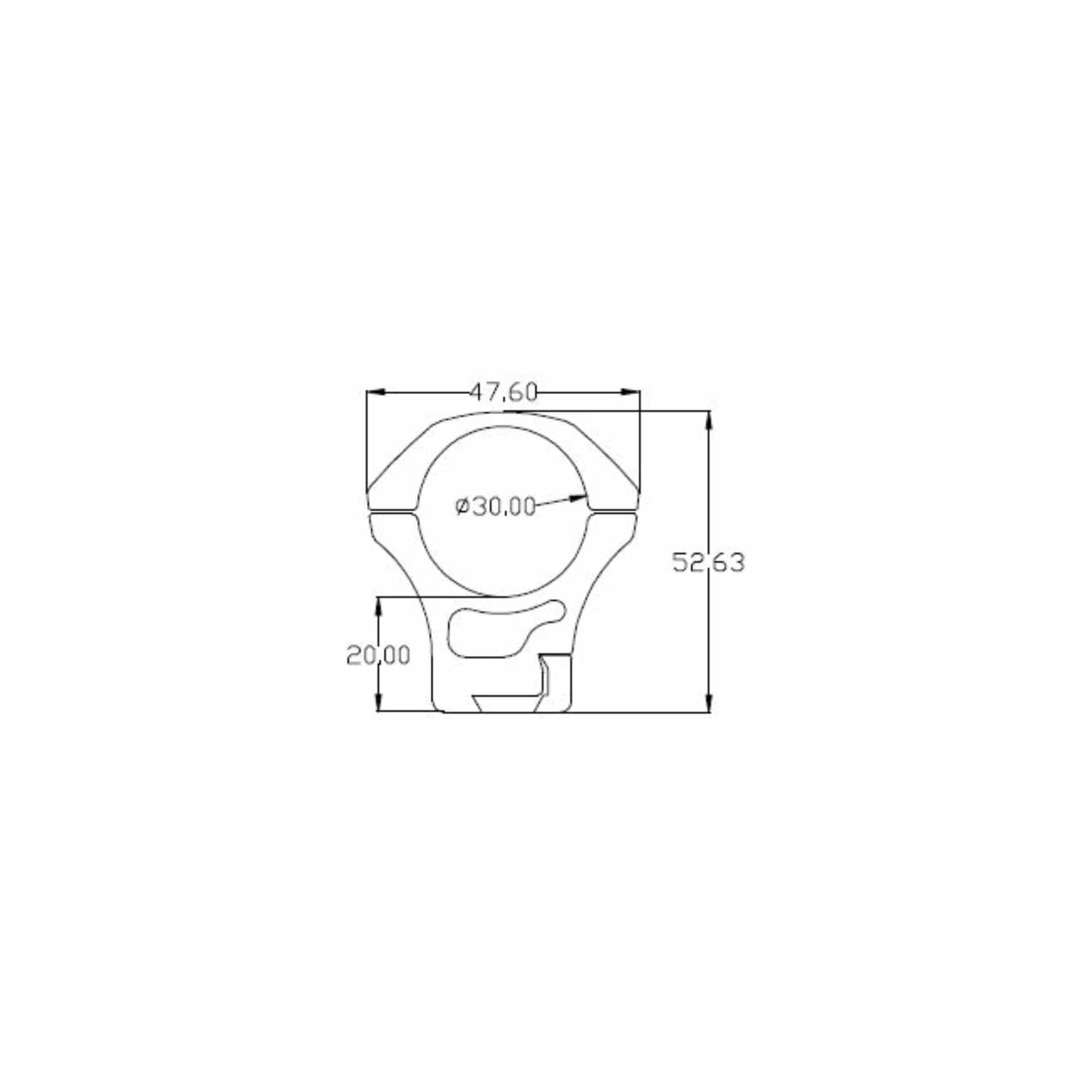

Technical specifications:
- Tube diameter: 30 mm
- Mount type: medium
- Rail compatibility: 9–11 mm dovetail
- Fixation: double hex
- Two piece
- Max. torque: ring: 2.0 Nm / rail: 3.4 Nm
- Material: 6061-T6 Aluminium
- Height: 17.10 mm
- Overall height: 52.63 mm
- Width: 47.6 mm
