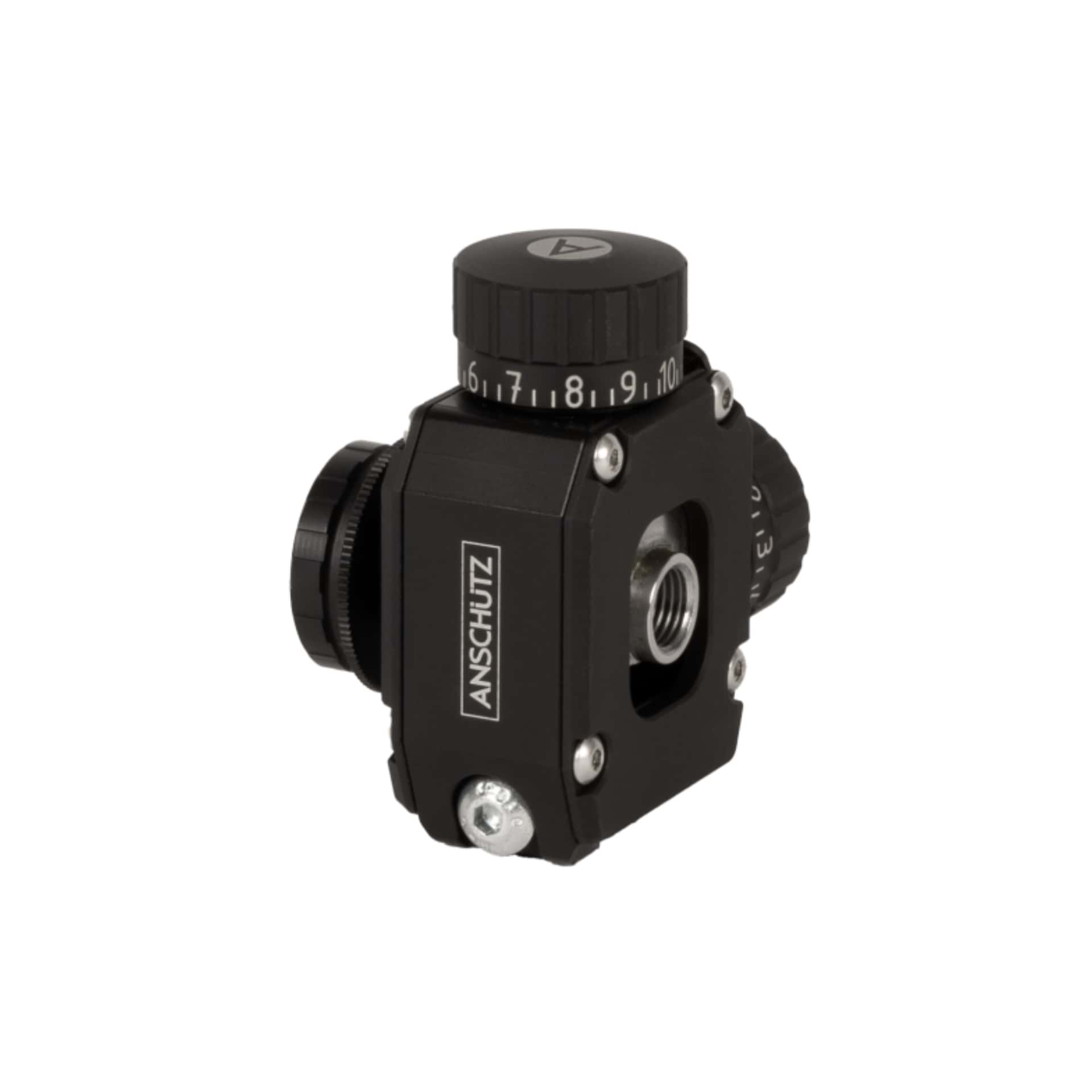

ANSCHÜTZ Diopter 8024, 24 Clicks, for Picatinny Rail
€559.00*
Manufacturer: ANSCHÜTZ
Manufacturer Information:
ANSCHÜTZ - J.G. Anschütz GmbH & Co. KG - Daimlerstrasse 12, 89079 Ulm - https://www.anschuetz-sport.com/ - info@anschuetz-sport.com
Details of the Responsible Person:
jabolo GmbH, jabolo.de, info@jabolo.de
The ANSCHÜTZ Diopter 8024 represents outstanding precision, rugged construction, and versatile application for both sporting and hunting use. Manufactured to the highest quality standards by ANSCHÜTZ, the sight is made from high-strength aluminum and stainless steel components.
Its wide adjustment range with 24 clicks and modular design make the Diopter 8024 highly versatile. Clearly visible pictograms on the sight ensure intuitive and user-friendly operation. The diopter comes standard with a robust clamp designed for Picatinny rails. Its durable, high-strength construction makes it highly resistant to recoil and shock – even when used on large-caliber rifles.
Another key feature: The sight can be converted from a right-hand to a left-hand model in just three simple steps.
Features:
- Adjustment: 24 clicks
- Mount: Picatinny rail
- Material: Aluminum & stainless steel
- Weight: 164 g
| Sight length | 10 m | 25 m | 30 m | 50 m | 100 m | 200 m | 300 m |
|---|---|---|---|---|---|---|---|
| 600 mm | 0.33 mm | 0.85 mm | 1.02 mm | 1.72 mm | 3.45 mm | 6.92 mm | 10.40 mm |
| 650 mm | 0.30 mm | 0.78 mm | 0.94 mm | 1.58 mm | 3.18 mm | 6.39 mm | 9.59 mm |
| 700 mm | 0.28 mm | 0.72 mm | 0.87 mm | 1.47 mm | 2.96 mm | 5.93 mm | 8.91 mm |
| 730 mm | 0.26 mm | 0.69 mm | 0.84 mm | 1.41 mm | 2.83 mm | 5.69 mm | 8.54 mm |
| 750 mm | 0.26 mm | 0.67 mm | 0.81 mm | 1.37 mm | 2.76 mm | 5.53 mm | 8.31 mm |
| 800 mm | 0.24 mm | 0.63 mm | 0.76 mm | 1.28 mm | 2.58 mm | 5.19 mm | 7.79 mm |
| 850 mm | 0.22 mm | 0.59 mm | 0.71 mm | 1.20 mm | 2.43 mm | 4.88 mm | 7.33 mm |
| 900 mm | 0,21 mm | 0.56 mm | 0.67 mm | 1.14 mm | 2.29 mm | 4.61 mm | 6.92 mm |
| 950 mm | 0.20 mm | 0.53 mm | 0.64 mm | 1.08 mm | 2.17 mm | 4.37 mm | 6.56 mm |
| 1000 mm | 0.19 mm | 0.50 mm | 0.60 mm | 1.02 mm | 2.06 mm | 4.15 mm | 6.23 mm |
