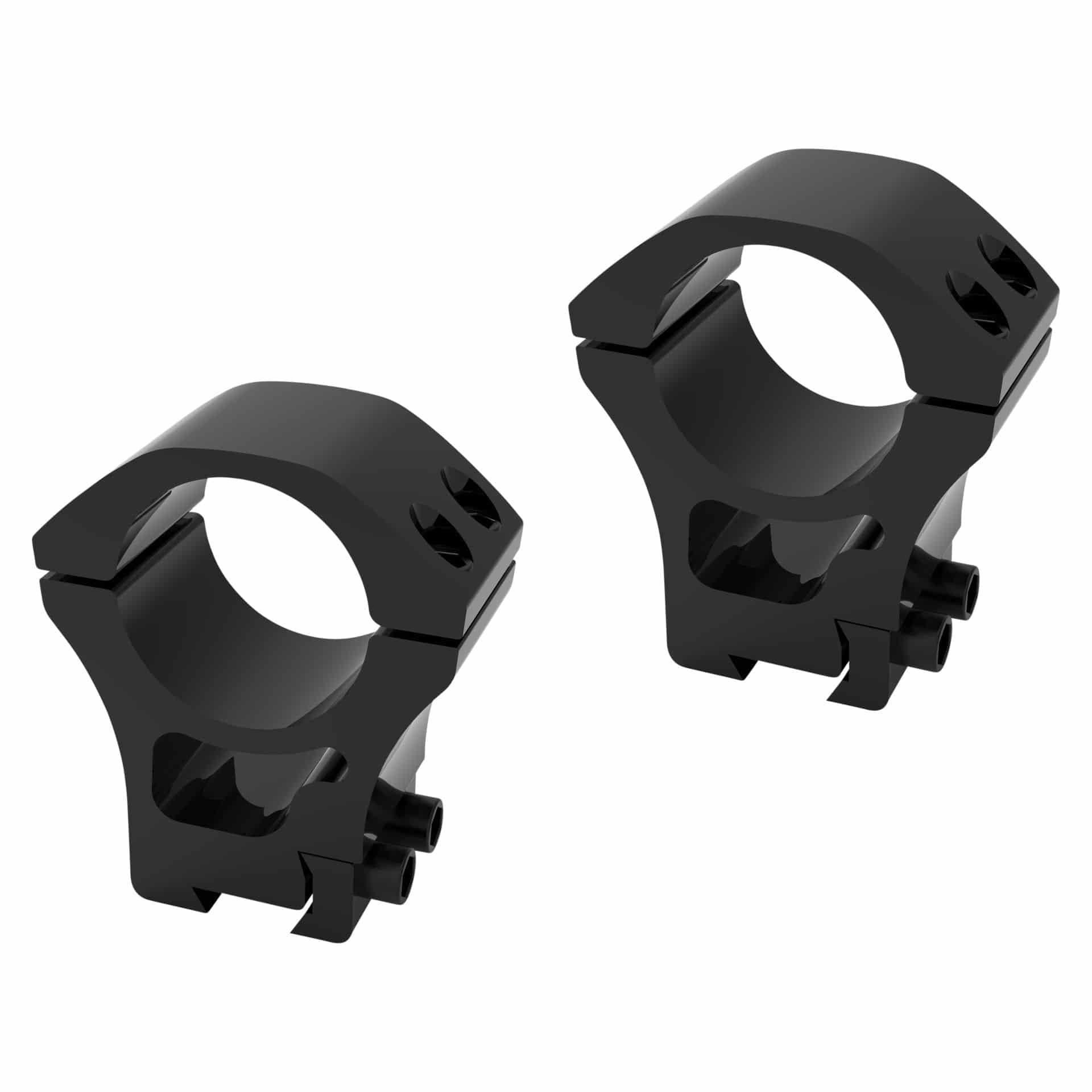

Anschütz Optics ring mount, 1", high, dovetail, screwed, two piece - 63602

Category: Mounts
Dovetail (mm): 9 - 11
Height adjustable: No
Mount height: High
Mount type: two-piece
Pre-inclined : No
Rail: Dovetail
Tube diameter: 25,4 / 1"

Manufacturer: Anschütz Optics

Details of the Responsible Person:
jabolo GmbH, jabolo.de, info@jabolo.de

Product information "Anschütz Optics ring mount, 1", high, dovetail, screwed, two piece - 63602"

Anschütz Optics ring mount, 1", high, dovetail, screwed, two piece - 63602

Maximum precision and reliability: The Anschütz Optics Ring Mount 1" High (63602) is the ideal choice for demanding marksmen and hunters. Made from durable 6061-T6 aluminum, this two-piece mount offers a perfectly flat surface for consistent performance under all conditions.

Designed for 9–11 mm dovetail rails, the high-profile height of 20 mm ensures optimal clearance for large objective lenses. Featuring a double hex fixation and M4x10 thread screws, it provides secure, rock-solid attachment. An integrated protection strip prevents scratches and enhances grip.

Technical specifications:

  • Tube diameter: 1" (25.4 mm)
  • Mount type: high
  • Rail compatibility: 9–11 mm dovetail
  • Fixation: double hex
  • Two piece
  • Max. torque: ring: 2.0 Nm / rail: 3.4 Nm
  • Material: 6061-T6 Aluminium
  • Height: 20 mm
  • Overall height: 50.94 mm
  • Width: 43.14 mm
