EK Archery REVO 7

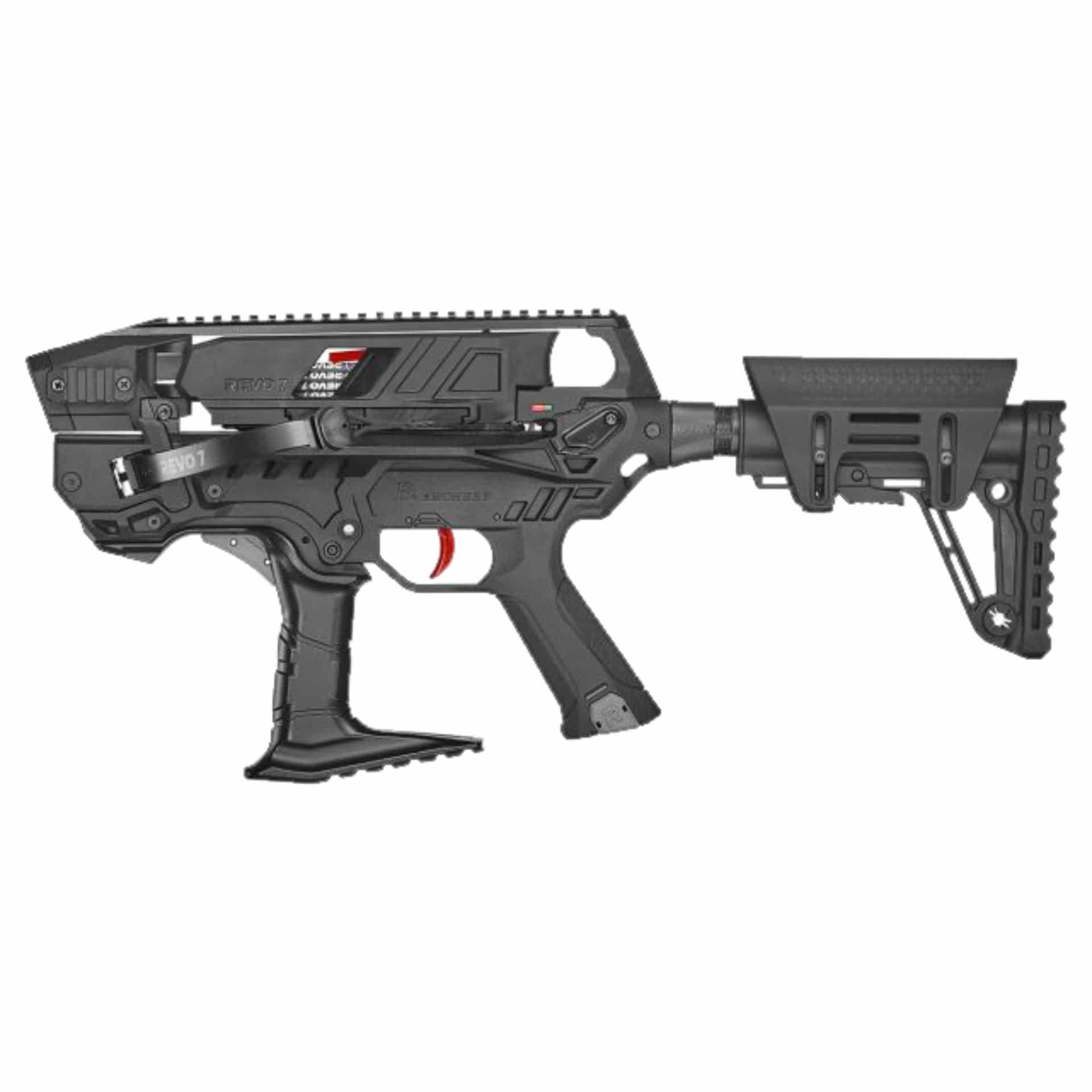

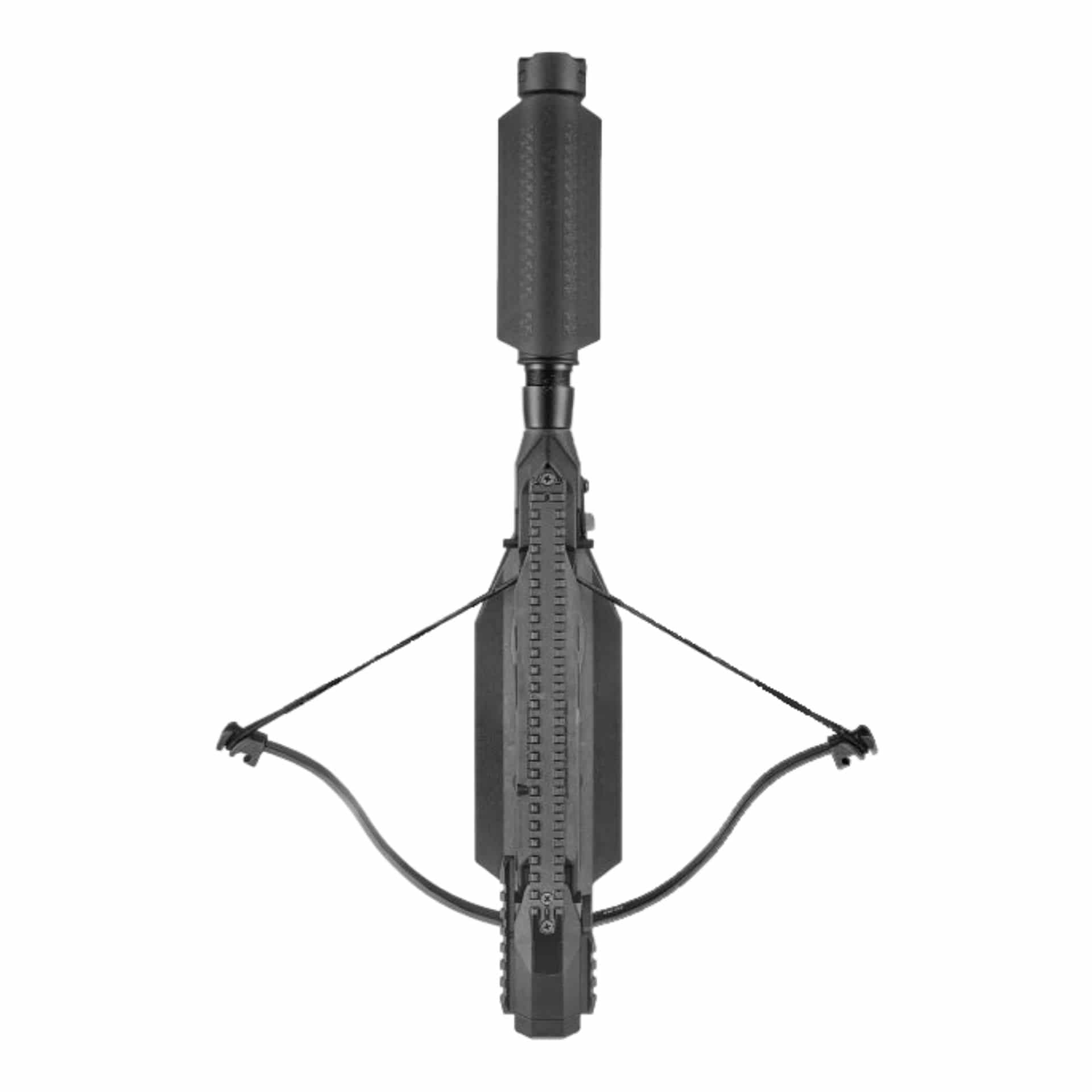

EK Archery REVO 7 – 3rd Generation Tactical Pistol Crossbow

The REVO 7 is EK Archery’s latest innovation, developed in cooperation with Jörg Sprave. Following the success of the Adder and Vlad magazine-fed crossbows, the REVO 7 introduces a new level of performance, safety, and modular design in a third-generation tactical pistol crossbow.

It features a interchangeable magazine, a full-length top Picatinny rail, a fast and ergonomic under-lever cocking system, and a true crossbow trigger mechanism. The interchangeable 41 kg / 90 lb limb uses a quick-change system for easy replacement. Newly designed 16-cm / 6.5-inch bolts with ultra-slim carbon shafts (5.5 mm diameter) provide significantly improved flight characteristics compared to traditional pistol crossbow bolts.

The REVO 7 can be disassembled into its main components without tools, allowing for quick and convenient transport. Safety features include a dry-fire prevention system and an ambidextrous safety lever, which can be set to engage automatically after cocking or operated manually via a selector.

The repeating mechanism allows up to 7 shots in approximately 4 seconds with practice. After each shot, the crossbow is immediately ready to fire again. According to the manufacturer, bolt speeds reach up to 240 fps, generating a kinetic energy of up to 24.62 joules.

Note: 6.3" bolts designed for the Vlad or Mey Interceptor are not compatible.

Package Includes:

• 1x EK Archery REVO 7 crossbow
• 7x 16 cm / 6.5" carbon bolts
• 1x 41 kg / 90 lb limb
• 1x Red dot sight
• 1x 7-shot magazine
• 1x Spare string
• 1x Safety glasses
• 1x String wax
• 1x Shoulder stock

Technical Data:

• Weight: approx. 3.3 kg
• Length: 58 cm
• Width: 40 cm (untensioned), 44 cm (tensioned)
