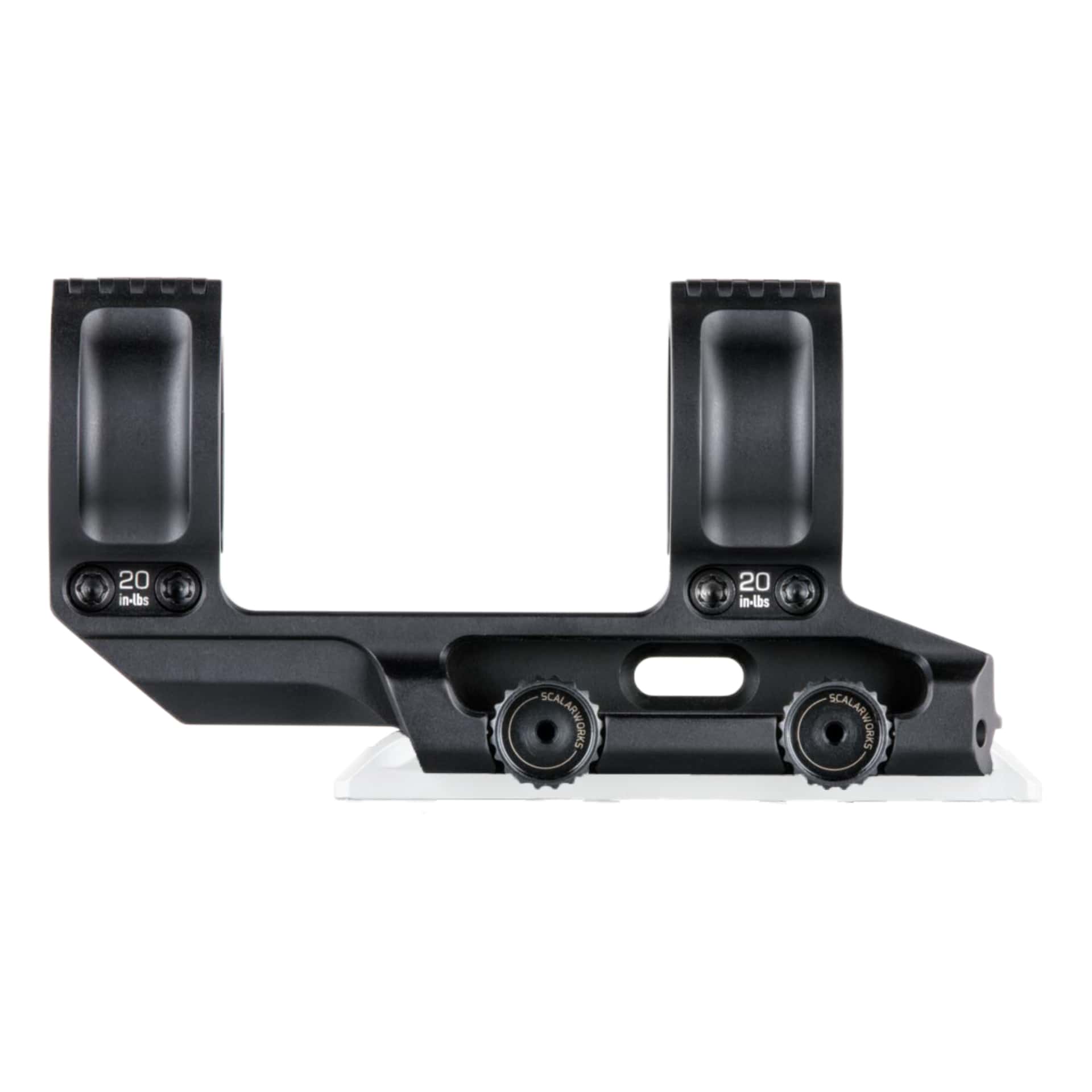

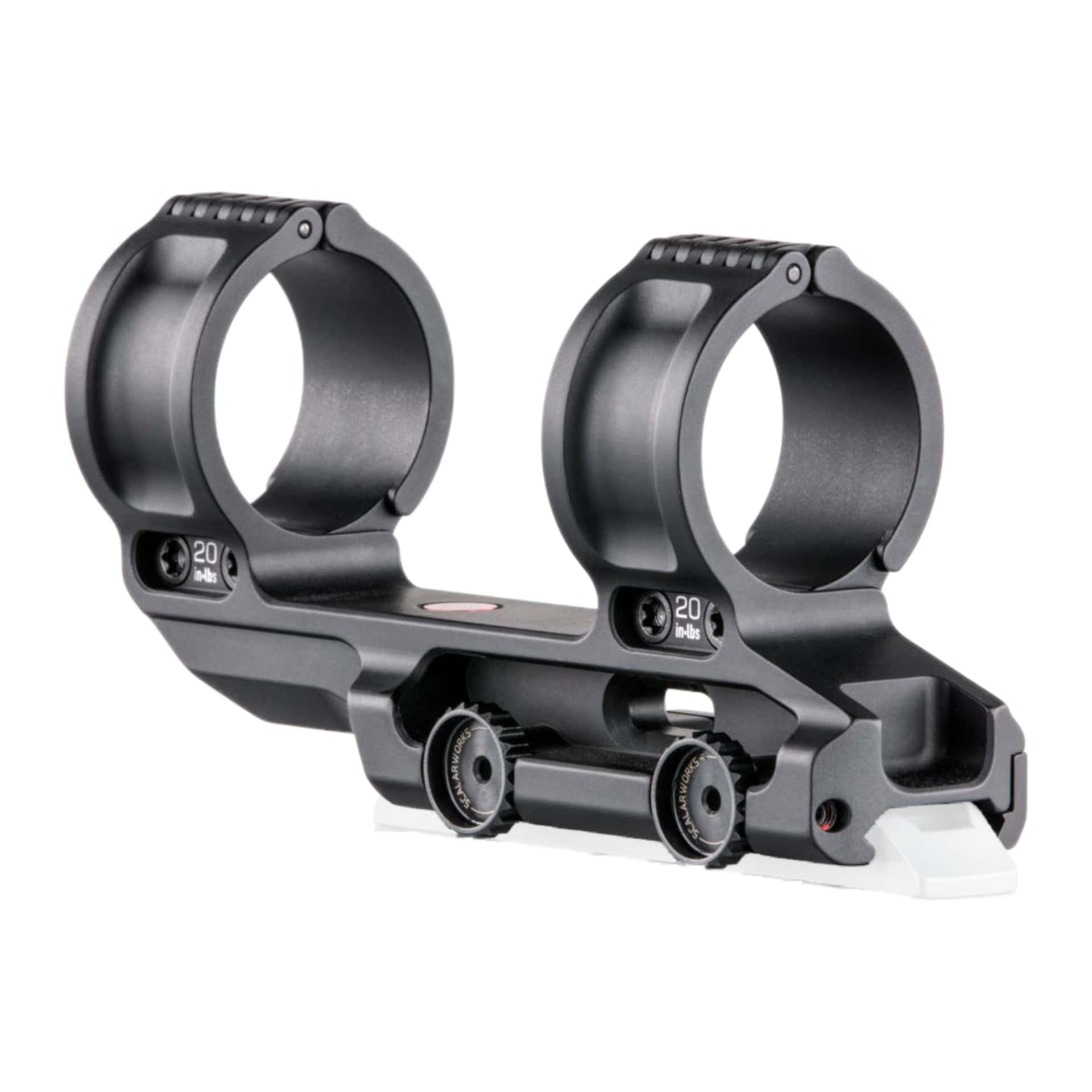

Scalarworks LEAP/09 34mm Scope Mount - 1.57” height - SW0910

The Scalarworks LEAP/09 is a premium 34mm scope mount designed for shooters who demand maximum strength, minimal weight, and uncompromising precision. Built for modern AR platforms, it sets a new standard in quick-detach scope mounting solutions.

Machined from a single piece of 7075-T6 aluminum, the LEAP/09 is CNC-milled from all six sides to achieve an exceptional strength-to-weight ratio and outstanding durability under extreme conditions.

At just ~154 g (5.43 oz), the SW0910 is among the lightest 34mm scope mounts available—without sacrificing rigidity.

LevelDrive – Perfect Scope Alignment

The integrated LevelDrive system allows you to level your scope quickly and precisely.
It eliminates the need for time-consuming adjustments, ensuring perfect alignment in seconds.

ClickDrive Quick-Detach System

The patented ClickDrive system enables tool-free installation using only hand torque.
A spring-loaded mechanism ensures complete recoil resistance, while the low-profile design eliminates protruding levers or knobs.

Engineered Strength, Minimal Weight

The LEAP/09 follows a “form follows performance” philosophy:

• Tubular front section for torsional rigidity
• Wide I-beam bridge to reduce recoil-induced movement
• Reinforced Mk2 rings for secure optic retention

This results in maximum durability with minimal mass.

1.57" Height – Versatile Standard Setup

The 1.57-inch (3.98 cm) optic height (SW0910) offers:

• consistent cheek weld
• lower-third co-witness with backup sights
• compatibility with inline night vision and IR systems

Compatibility

The LEAP/09 is compatible with:

• MIL-STD-1913 Picatinny rails
• 34mm scopes (LPVO & high-power optics)

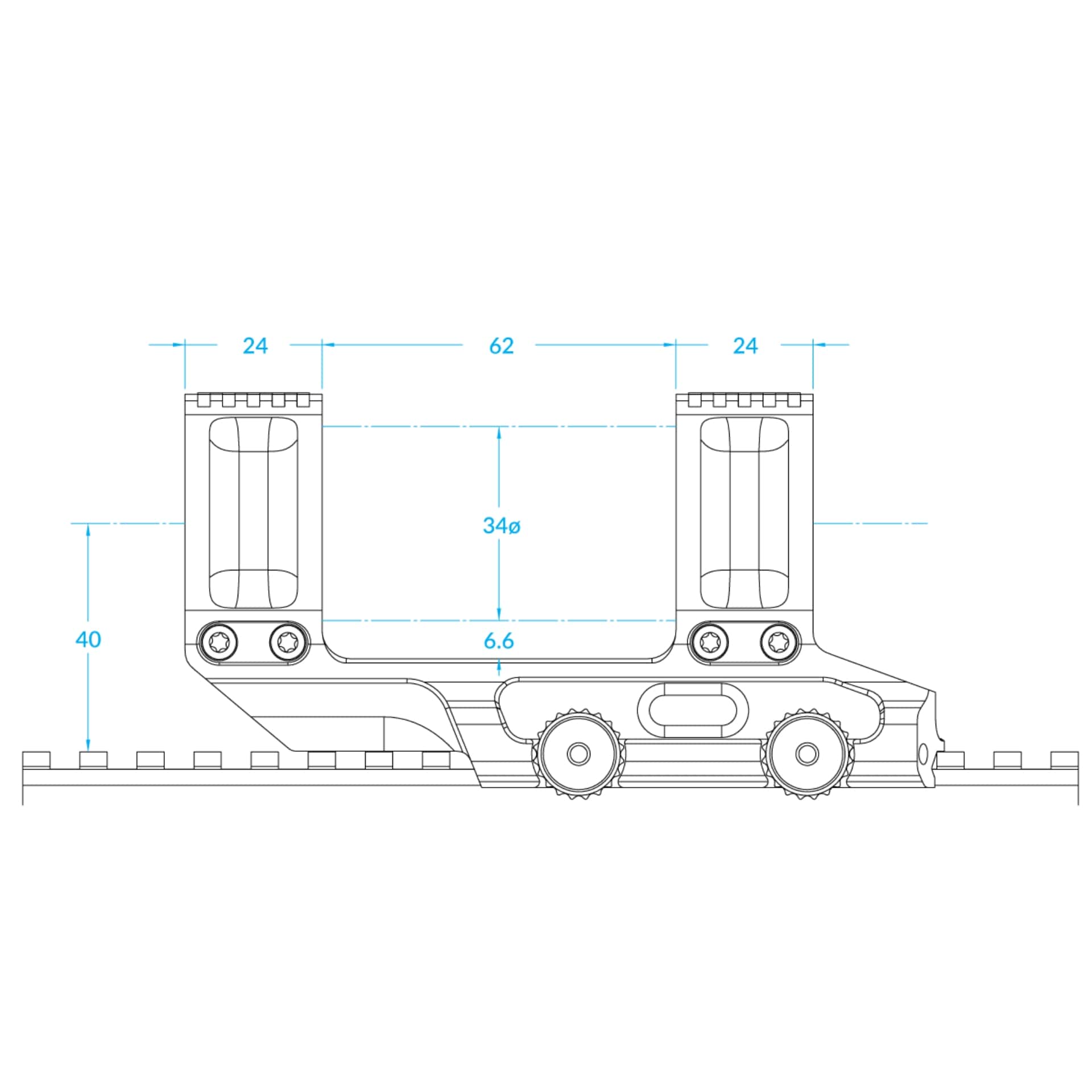

Technical Specifications

• Material: 7075-T6 Aluminum / 4140H Steel
• Finish: Type III Anodizing / Flash Nitride
• Ring Diameter: 34 mm
• Optic Height: 1.57" (3.98 cm)
• Cant: 0 MOA
• Weight: ~154 g
• Origin: USA

In the Box

• Scalarworks LEAP/09™ Mount
• 4x M4 fasteners (Nylon patched)
• T25 Torx driver bit
• LevelDrive tool
• Manual

Conclusion: The Scalarworks LEAP/09 SW0910 redefines what a modern 34mm scope mount should be. Combining ultra-lightweight construction, advanced engineering, and user-focused features like LevelDrive and ClickDrive, it is the ideal choice for demanding shooters and professional setups.
